Mercedes Arocs Cash Truck
%252Fmercedes_arocs%252FIMG_1379_gJTOx6p.png&w=1920&q=75)
Robust and versatile truck modified to include secure compartments for cash and valuables, offering enhanced protection and reliability for high-value transport operations.
- CEN Level B6
- CEN Level B4
- & More
- CEN Level B5
Armouring Levels
- CEN Level B6
- CEN Level B4
- & More (as per requirement)
- CEN Level B5
Armouring options
In addition to the standard vehicle options, a wide range of advanced armouring options to enhance security and mobility.
Features
The Armoured Arocs CITV features reinforced steel plating, multi-layered ballistic glass, a protected fuel tank, engine bay shielding, heavy-duty tires, and high-security vault doors. It is designed to withstand ballistic and explosive threats, ensuring maximum protection for cargo and occupants during critical operations.
Gun Ports
Allows security personnel to respond to threats without exposing themselves. The ports are designed for quick and efficient defensive actions.
Multi-Layered Ballistic Glass
Withstands ballistic and blast impacts to ensure occupant safety. The advanced transparent armour offers robust protection against bullets and shrapnel while maintaining clear visibility.
Cabin Roof Hatch
Equipped with reinforced cabin roof hatch allowing discreet access for security personnel and operational efficiency in cash transport missions.
Engine Bay Protection
Ensures critical components are shielded from blast and ballistic threats, maintaining vehicle operability in high-risk scenarios.
High-Security Vault Area
Spacious and customizable vault area, offering advanced ballistic protection and tamper-proof locking systems to securely transport a wide range of valuable assets
Heavy Duty Doors
Heavy duty vault doors with advanced locking mechanisms and heavy duty hinges, providing maximum security and durability for high-value cargo protection.
Protected Fuel Tank
Ensures enhanced safety and durability against ballistic threats and external impacts.
Designed with a focus on performance, durability, and cutting-edge technology, the Arocs CITV truck ensures maximum efficiency and operator comfort in high-security transport operations.
360° Surveillance Systems
Provides real-time monitoring with comprehensive coverage, ensuring enhanced situational awareness and security for the vehicle and its occupants.
Rotating Beacon
Blue beacon lights indicate the vehicle is operational, enhancing visibility and priority during critical cash/high-value operational tasks.
Heavy Duty Tyres
Fitted with heavy-duty tires for durability, reliability, and optimal performance in challenging terrains and high-security operations.
Advanced Communication Systems
Equipped with advanced communication systems, customized as per requirements, ensuring seamless and secure connectivity for specific operations.
Fire Suppression System
Equipped with an accessible fire suppression system to ensure safety and rapid response during emergencies.
Lift control system
Secure and easily accessible control system for the hydraulic lift, enabling seamless and secure handling of heavy cargo during operations.
Storage Compartments
Customizable and Integrated storage compartment for secure and organized placement of tools and equipment.
Hydraulic Lift System
Hydraulic lift system for efficient loading and unloading, ensuring safe and seamless handling of heavy cargo.
Cargo tie-down rail system
Designed for securing goods during transport. These rails allow for the attachment of straps or other securing mechanisms to keep cargo stable and prevent movement.
Mercedes Arocs Cash Truck specifications
Swipe the tables sideways to compare all columns.
Base Vehicle Overview
| Category | Specification |
|---|---|
| Model | Mercedes-Benz Arocs 5 1840 4x2 |
| Engine Power | 290 kW (394 PS) |
| Maximum Torque | 1,900 Nm |
| Transmission | 4x2 |
| Wheelbase | 4,800 mm |
| Maximum Weight | 18,000 kg |
| Chassis Weight | 7,455 kg |
| Payload Capacity | 10,545 kg |
Engine & Transmission
| Category | Specification |
|---|---|
| Engine Model | OM460, 6-cylinder |
| Displacement | 12,816 cm³ |
| Emission Standard | Euro III (Optional: Euro VI for export) |
| Gearbox | Mercedes PowerShift 3, G 230-12/11.7-0.78 |
| Gears | 12 forward, 4 reverse |
| Fuel Tank | 290 liters (steel) |
| Power Take-Off (PTO) | Optional engine/transmission-mounted PTO |

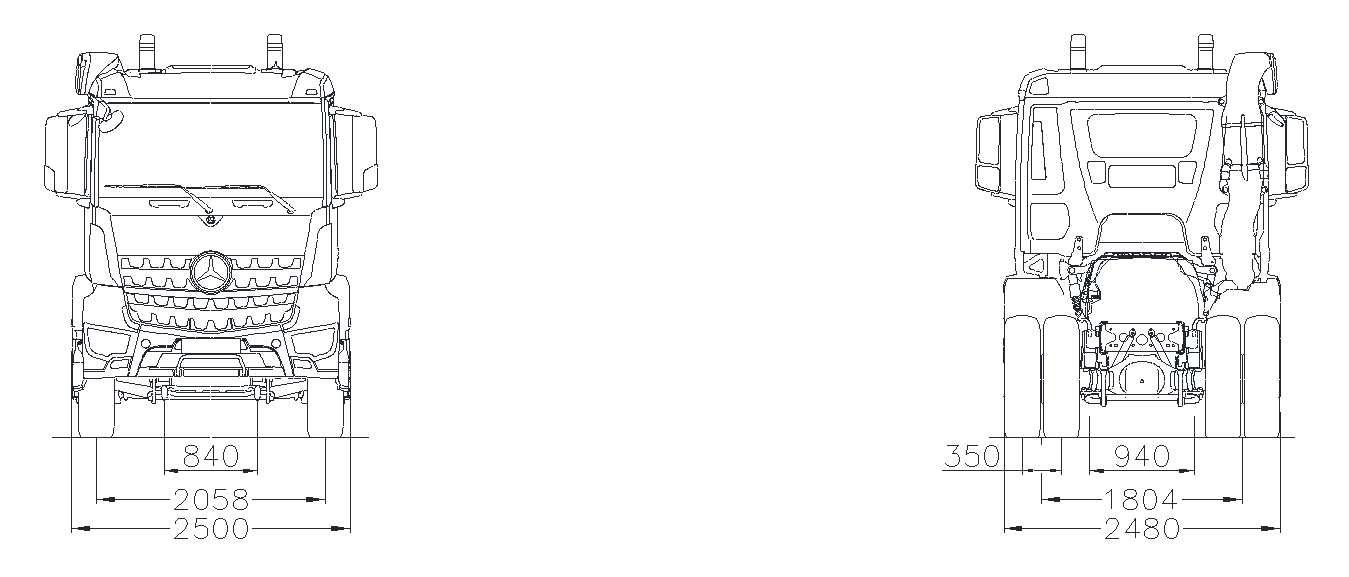

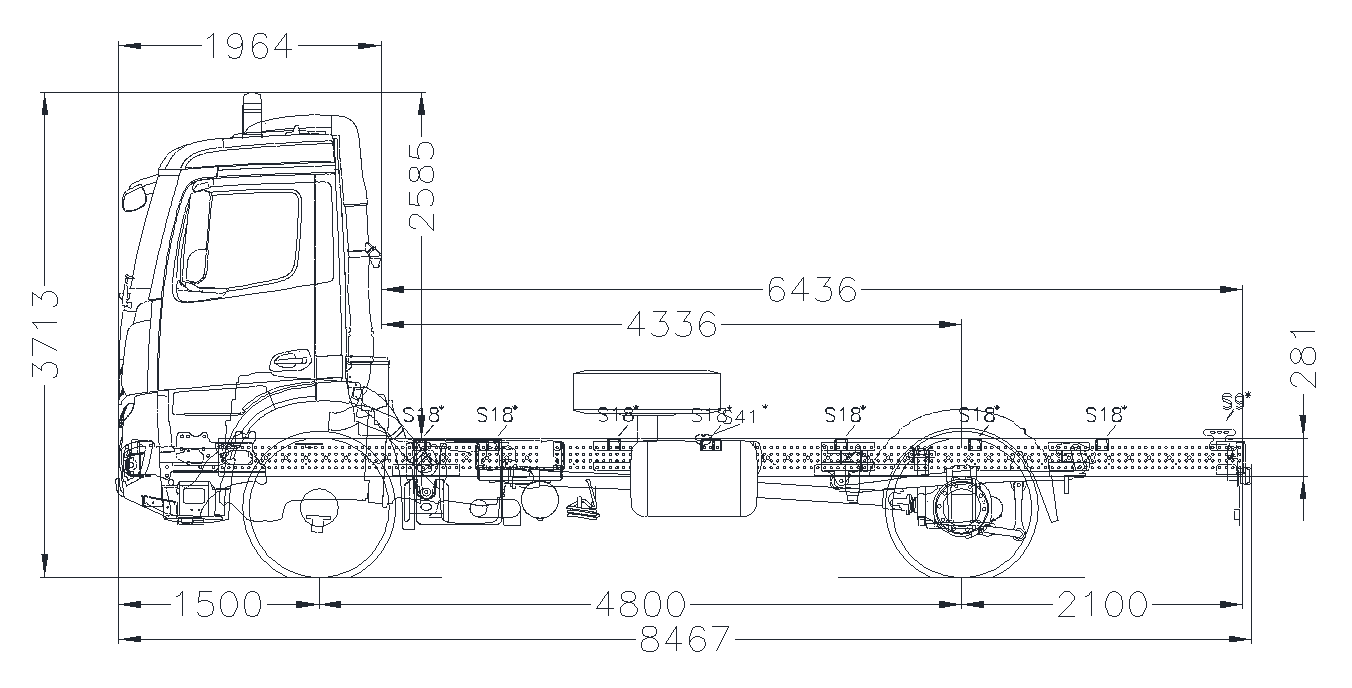

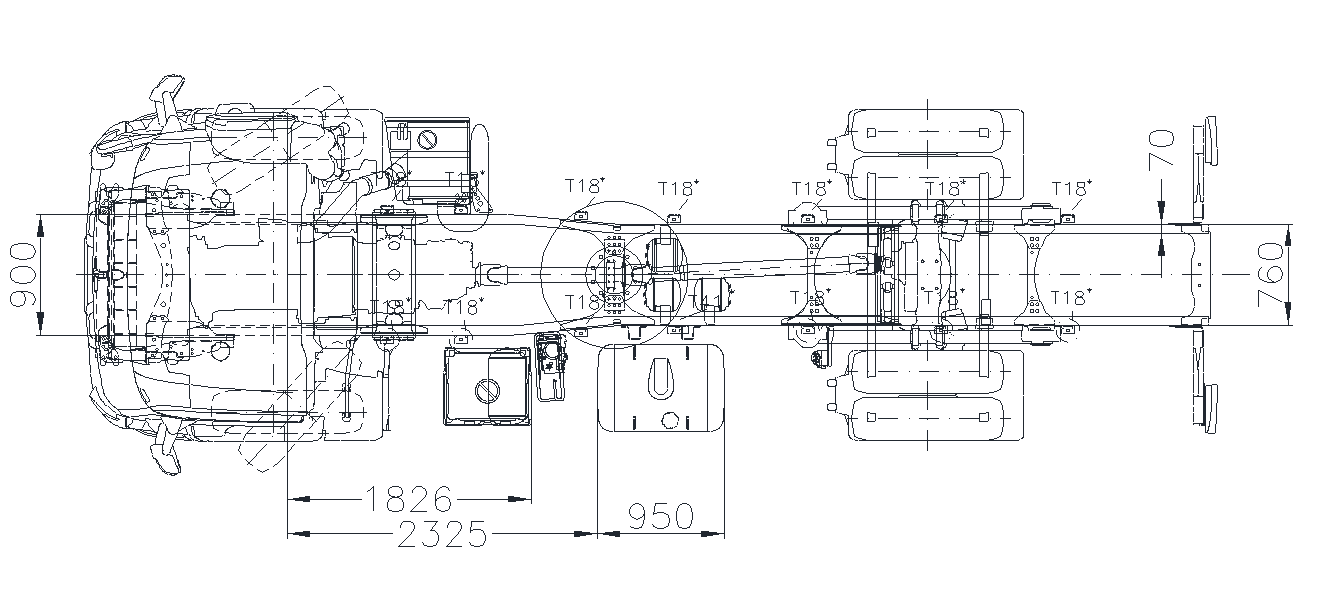

Base Vehicle Dimensions
| Category | Specification |
|---|---|
| Wheelbase | 4,800 mm |
| Chassis Height (Front) | Loaded: 1,037 mm, Empty: 1,128 mm |
| Chassis Height (Rear) | Loaded: 1,036 mm, Empty: 1,172 mm |
| Ground Clearance | Front Axle: 250 mm, Rear Axle: 250 mm, Between Axles: 300 mm |
